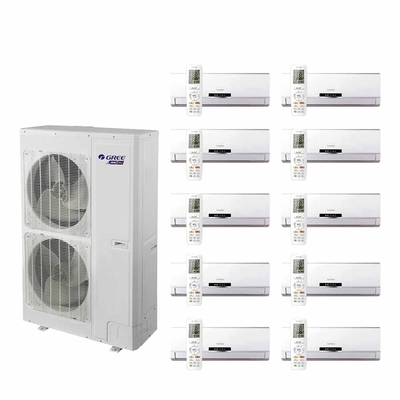

Hotels 8-12HP Compact Dimension GREE VRF / VRF Commercial Air Conditioners For Showroom

1.0 Sets
MOQ
Hotels 8-12HP Compact Dimension GREE VRF / VRF Commercial Air Conditioners For Showroom
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Food & Beverage Factory, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Food & Beverage Shops, Advertising Company
Type: Muliti Split Commercial Air Conditioners
Operating Voltage: 380/400 VAC
Mounting: Slab Fixed
Warranty: 1 Year
Dimension(L*W*H): 940x460x1615(mm)
Key Selling Points: Energy saving
Airflow: m³/h
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 3 years
Core Components: Compressor
Product name: 8-12HP Compact Size GREE VRF/VRF Commercial Air Conditioners
Refrigerant: R410a
Cooling Capacity: 22.4 ~ 33.5kW
COP(W/W): 4.9
Heating Capacity: 24-35kW
EER(W/W): 3.66
Heating Amb Temp: -20~27°C
Compressor: Inverter Rotary
Cooling Amb Temp: -5~52°C
Max IDU qty.: 13-20
After Warranty Service: Video technical support, Online support, Spare parts
Local Service Location: None
Showroom Location: None
Certificering: CB, CE, EMC, RoHS, SASO
After-sales Service Provided: Free spare parts, Video technical support, Online support
Marketing Type: Hot Product
Basis informatie
Certificering: CB, CE, EMC, RoHS, SASO
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Carton
Supply Ability: 2000 Set/Sets per Month
Productomschrijving
Products Line Up
GMV5 Mini System Capacity: 8HP / 10HP / 12HP
GREE‘s GMV5 slim systems offer outstanding performance and reliable, affordable comfort in every room of your home, or small commercial area such as restaurant, small office building, shops, gym room, apartment etc according on your needs. A multi-zone system is recommended for places with a small or medium area in which separate comfort zones are required, as it offers greater flexibility, temperature control and a more precise comfort through a combination of 13 to 20 indoor units.

16 Types of Indoor Units to Match With
Product Application
Application Area:
Small commercial area such as appartment, shops, small office building, resturant, gym room,etc
Product Paramenters
Model


GMV-224-280-335WL/C-X
Capacity Range

HP
8-10-12

Capacity
Cooling
kW
22.4-28-33.5
Heating
kW
24-30-35
COP

W/W
4.9
Power Supply

V/Ph/Hz
380-415,3,50/60Hz
Max. Circuit/Fuse Current

A
17.2-22.4-24.5

Power comsumption
Cooling
kW
6.12-7.78-9.57
Heating
kW
4.9-6.12-7.14
Maximum drive IDU No.

unit
13-17-20
Refrigerant Charge volume

kg
5.5-7.1-8
Sound pressure level

dB(A)
74

Connecting pipe
Liquid
mm
Φ9.52-9.52-12.7
Gas
mm
Φ19.05-22.2-25.4
Dimension(WxDxH)
Outline
mm
900×340×1430(224)
mm
900×340×1615(280,335)
Package
mm
998x458x1500(224)
mm
1038x578x1765(280,335)
Net weight

kg
133/166/177
Loading quantity
40'GP/40'HQ
set
56/44/44
Product Description

All DC Inverter Technology to Improve Compression Efficiency

All DC inverter compressor and high-performance high pressure chamber are adopted to reduce loss of overheat and improve compression efficiency from direct intake. Compared with low pressure chamber, the compression efficiency is improved. High-efficient permasyn motor is adopted to provide better performance than traditional DC inverter compressor.


All DC Inverter Compressor
All DC inverter compressor is used in this system. It can directly intake gas to reduce loss of overheat and improve efficiency.


High-efficient permasyn motor is adopted to provide better performance than traditional DC inverter compressor.

Sensorless DC Inverter Fan Motor
Stepless speed regulation ranges from 5Hz to
44Hz.Compared with traditional inverter motors, the operation is more energy-saving.
Sensorless control technology guarantees lower noise, less vibration and steadier operation.
Wider Operation Condition Range
The unit adopts DC motor with more accurate high pressure control, which effectively solves the high pressure control problem in low ambient temperature cooling. So the operation range in cooling is wider.
Low Noise of Outdoor Unit
The advanced sub-cooling control technology is applied to reduce the liquid flow noise of indoor unit in cooling operation.
Noise of outdoor unit can be as low as 45dB(A) thanks to noise optimized design or fan system and compressor system, and multiple kinds of quiet modes of outdoor unit.
Intelligent Temperature Control Technology
Intelligent temperature control technology is adopted for super fast cooling or heating, so that indoor temperature will reach set temperature more quickly.
Intelligent Defrosting Control
During the heating process, the frost status of the unit will be different after affecting by factors of outdoor ambient temperature, load status and operation time. Through real-time detection of operation parameters of the system, it can decide the defrosting time by intelligently estimating the thickness of frost, high pressure of system and blockage status of heat exchanger.
Non-commutative Oil Return Technology in Heating
The unit can achieve non-commutative oil return in heating when outdoor ambient temperature is within 0~20°C.
Thanks to this technology, indoor ambient temperature is more stable and comfort is improved in heating mode.
High Anti-interference Ability
The latest CAN bus communication technology is adopted, with non-polar communication and high anti-interference ability. Common communication wire can meet the communication demand with no need of specialized shielded wire. The customers can buy the communication wire by themselves, greatly reducing installation difficulties.
Advanced High-frequency Transformer with More Stable Voltage
The advanced switching power supply is adopted with lower power consumption and higher power efficiency.
Wide voltage-regulation range ensures stable voltage output when the voltage of grid fluctuates.
Compared with conventional transformer, the size of high-frequency transformer is small and the weight is light.

Control Board Refrigerant Cooling
Usually, air-cooled fins are adopted for heat radiation. Due to large size and passive radiation, heat radiating effect is unsatisfactory; with refrigerant cooling technology, heat radiating effect is much better because of compact structure and active radiation. Module temperature is dropped from 80℃ to 65 ℃, which will increase module life and stability.
Ultra-long Connection Pipe
Under the subcooling control technology gained by adding subcooler, the indoor unit and outdoor unit of GMV5 mini can operate reliably with longer connection pipe.
Packing & Delivery
Packing:
1: The Outdoor Unit is fixed on a plywoodwooden pallet, protected by carton or plywood booard;
2: The Indoor Unit is packed by carton protected by shock absorptive material

Shippment: By Land, Or By Air.
Note: We can help you to arrange cost effective shipping service, to get you fast shipment with less cost.
Usually we recommend full container shipment 20GP, 40GP, 40HQ.
FAQ
Q1: What's your payment terms?
A: T/T or L/C.

Q2: What documents you provide?
A:Usually, we provide Commerical Invoice, Packing List, Bill of loading. If your have any special requirements, let us know.

Q3: Can you provide drawing service?
A: Yes, Our professional HVAC engineering team may give the optimized solutions, we can also provide professional HVAC drawings.

Q4: Can you provide installation accessories along with equipment?
A: Sure. we can calculate and quote you needed HVAC installation kit which includes copper pipe, insulation pipe, air diffuser & grill, ball valve, etc.

Q5: How long is the lead time?
A:For the standard model, the lead time is around 30days.

Q6: Do you have technical support?
A: All the product is guarantee for one year. And we will supply the technical support and spare parts after the warranty time. You can contact us 24 x 7 online.

Q7: How to transport the products to my country?
A: We can arrange the shipping by sea or by air.

Q8: How about the packing?
A:Usually we provide the packing as wooden pallet or carton.

Q9: What is loading port?
A:Usually the loading port is Zhuhai, China
